Description

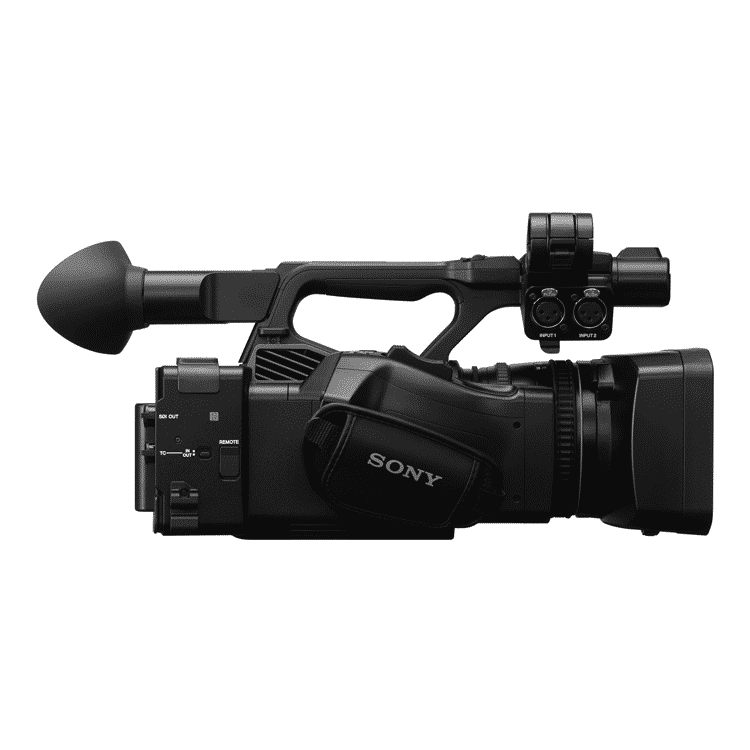

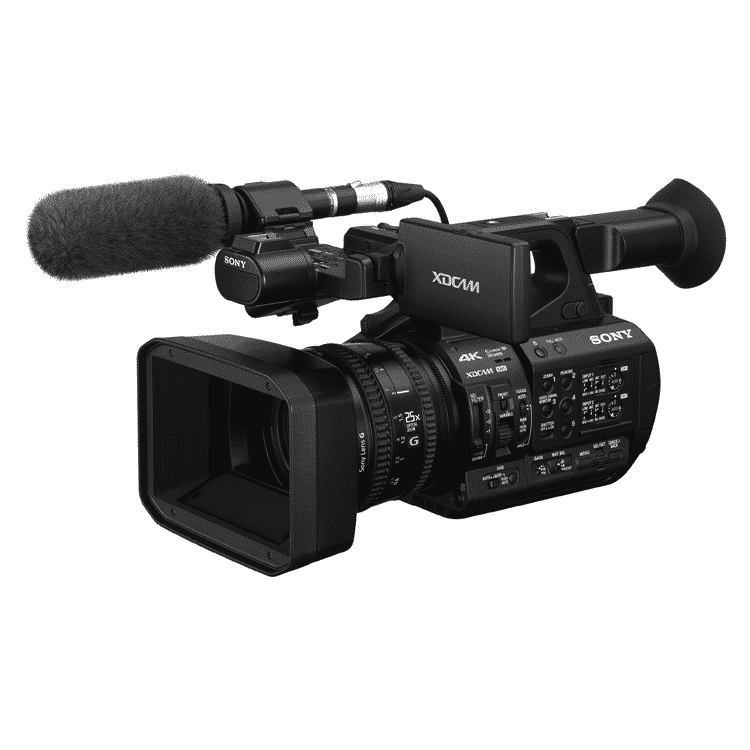

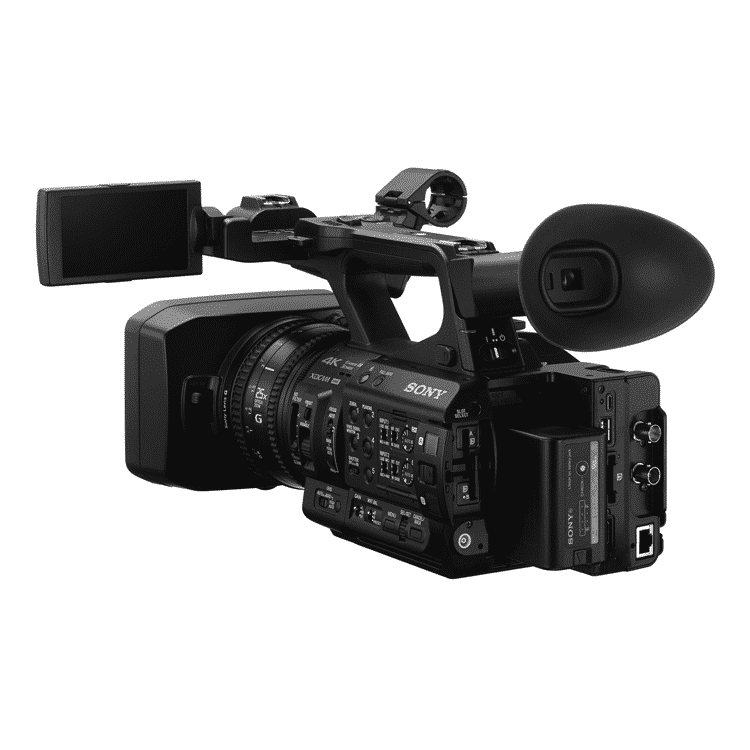

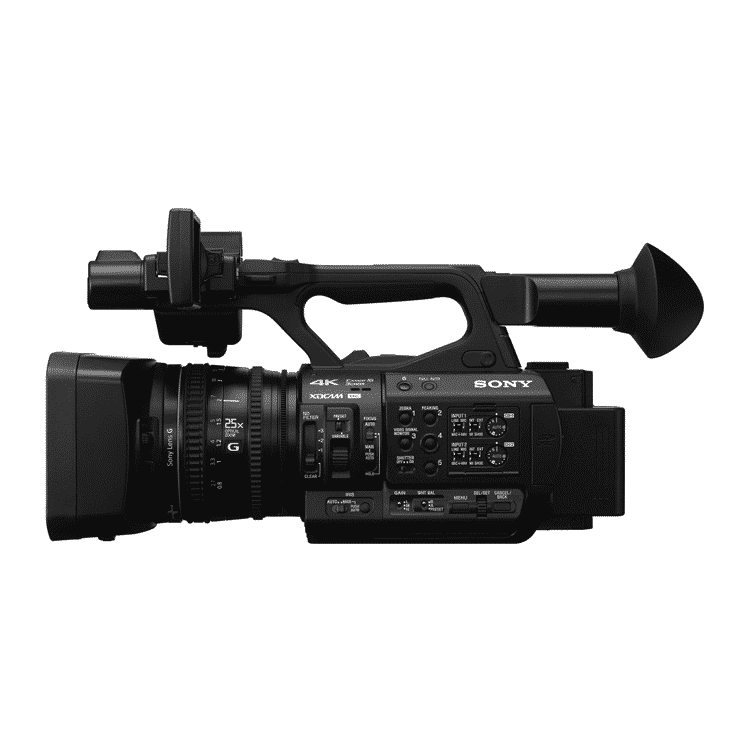

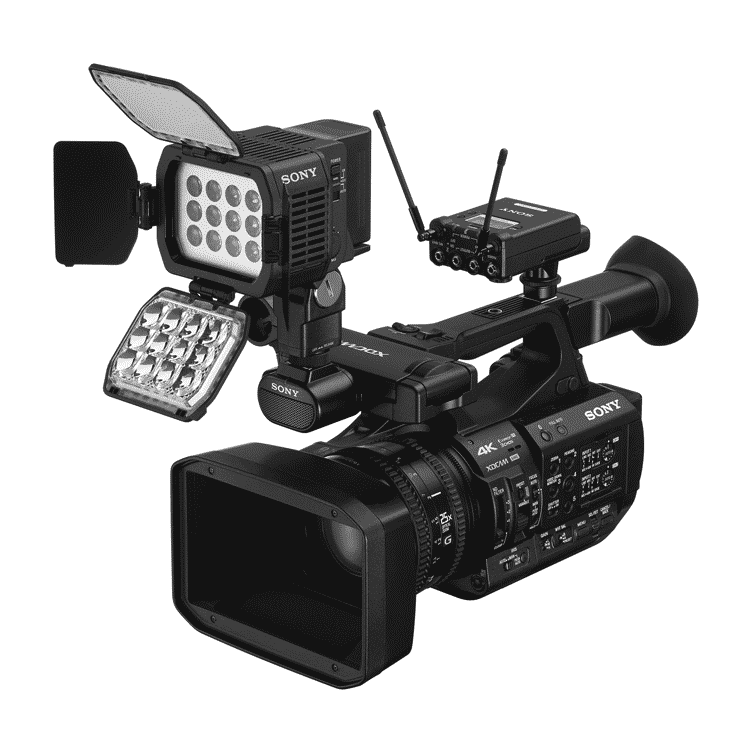

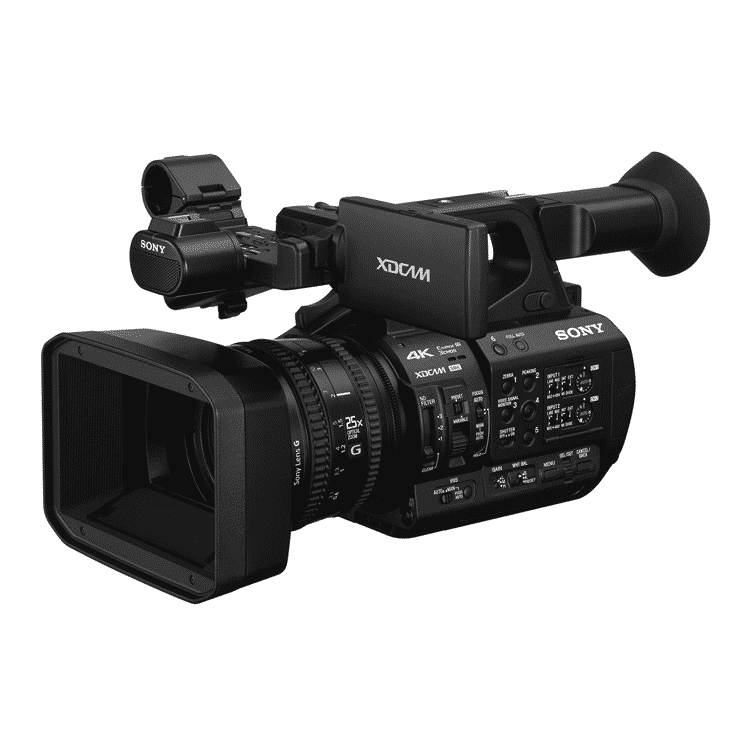

Sony PXW-Z190 4K 3 CMOS 1/3? Sensor XDCAM Camcorder
The recently launched Sony PXW-Z190 4K camcorder is a great gadget when it comes to high video quality. It has inbuilt sensors that improve the recording quality making the videos more vibrant and clear. Sony PXW Z190 4K camcorder is an all-around camcorder offering various styles of HD recording and 4K recording. On top of this, the camcorder has combinations you can apply when shooting to allow for video recording that will suit your specific requirements.
The camcorder’s simple build and solid body make it easy to carry for distant video recording. It can be used in many different video recording environments making you enjoy a limitless recording experience with Sony PXW Z190 4K camcorder.
Features of Sony PXW Z190 4K camcorder
The Sony PXW Z190 4K camcorder has three 1/3-inch sensors that are very effective in improving video recording quality. With the improved Exmor sensors installed, green, red, and blue colors are recorded separately in 4K recording making the video quality stand out. Face detection is one of the features that the Sony Z190 4K camcorder has that isn’t available in most Sony 4K camcorders. This comes with a face registration feature that improves the shooting experience with Sony.
Sony Z190 4K camcorder can shoot 4K videos at 60 fps which means you won’t lose any content even when recording fast-moving scenes. Another brilliant feature of the Sony PXW Z190 4K camcorder is the ability to record 4K and HD simultaneously. This can be very convenient in a situation where real-time recording is being conveyed. Sony PXW Z190 has an impressive 4-channel audio recording making it convenient for large events as well as multiple recordings at the same time. Videos and films recorded are stored in an SD memory card which is removable.
Benefits of using the Sony PXW Z190 4K camcorder
Zooming power in the Sony PXW-Z190 4K camcorder is not something you can bypass. The camcorder boasts a 25X optical zoom lens and still displays an extremely clear picture. Sony PXW Z190 4K camcorder can as well record videos in different formats including the XAVC format common with most Sony 4K camcorders.
Other formats include; MPEG HD, MPEG422, and DVCAM.
With the Sony PXW-Z190 4K camcorder, the recording is very clear and visible due to the HLG (Instant HDR) workflow. This feature makes the video quality livelier than the quality produced by other camcorders. Sony PXW Z190 4K camcorder can be used in various different recording settings including interviews, filming, etc.
Additional information
| Weight | 8.0 kg |
|---|
Specifications
| Mass | Approx 2.3 kg (body) |
| Approx. 5 lb 1.1 oz (body) | |
| Approx. 2.8 kg (with lens hood, eyecup, BP-U35 battery, a SD memory card) | |
| Approx. 6 lb 2.8 oz (with lens hood, eyecup, BP-U35 battery, a SD memory card) | |
| Dimensions (W x H x D) | 190.0 × 202.0 × 419.7 mm (With the accessories (lens hood, eyecup), excluding the grip belt |
| and including the projecting parts) | |
| 7 1/2 x 8 x 16 1/2 inches (With the accessories (lens hood, eyecup) | |
| excluding the grip belt and including the projecting parts) | |
| Power Requirements | DC In: 12V, |
| Battery: 14.4V | |
| Please use genuine Sony batteries to ensure correct and safe operation*1 | |
| Power Consumption | Approx. 24W |
| (while recording with LCD Off, EVF On when the external device connector is not used.) | |
| Approx. 36W (while recording with LCD On, EVF On when the external device connector is used.) | |
| Battery Operating Time | Approx. 1 hours, 20 minutes with BP-U35 battery |
| (while recording with LCD Off, EVF On when the external device connector is not used.) | |
| Approx. 1 hours, 5 minutes with BP-U30 battery | |
| (while recording with LCD Off, EVF On when the external device connector is not used.) | |
| Approx. 2 hours, 10 minutes with BP-U60 battery (while recording with LCD Off | |
| EVF On when the external device connector is not used.) | |
| Approx. 3 hours, 15 minutes with BP-U90 battery (while recording with LCD Off, | |
| EVF On when the external device connector is not used.) | |
| Operating Temperature | 0°C to 40°C |
| 32°F to 104°F | |
| Storage Temperature | -20°C to +60°C |
| -4°F to +140°F | |
| Recording Format (Video) | |
| XAVC-L QFHD mode: | |
| VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC | |
| XAVC-L HD 50 mode: | |
| VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC | |
| XAVC-L HD 35 mode: | |
| VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC | |
| XAVC-L HD 25 mode: | |
| VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC | |
| DVCAM mode: | |
| CBR, 25Mbps, DVCAM | |
| Recording Format (Audio) | |
| XAVC-L mode: | |
| LPCM 24-bit, 48kHz, 4 channels | |
| DVCAM mode: | |
| LPCM 16-bit, 48kHz, 4 channels | |
| Recording Frame Rate | |
| XAVC-L QFHD 150 mode: | |
| 3840×2160/59.94P, 50P, 29.97P, 23.98P, 25P | |
| XAVC-L HD 50 mode: | |
| 1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280×720/59.94P, 50P | |
| XAVC-L HD 35 mode: | |
| 1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P | |
| XAVC-L HD 25 mode: | |
| 1920×1080/59.94i, 50i | |
| DVCAM mode: | |
| 720×480/59.94i, 29.97PsF 720×576/50i, 25PsF | |
| Recording/Playback Time | |
| XAVC-L QFHD 150 mode | |
| When using 128GB memory card: | |
| Approx. 88 minutes | |
| XAVC-L HD 50 mode | |
| When using 128GB memory card: | |
| Approx. 240 minutes | |
| XAVC-L HD 35 mode | |
| When using 128GB memory card: | |
| Approx. 325 minutes | |
| XAVC-L 25 mode | |
| When using 128GB memory card: | |
| Approx. 445 minutes | |
| When using 128GB memory card: Approx. 425 minutes | |
| Recording Format (Proxy Audio) | XAVC Proxy: AAC-LC, 128 kbps, 2 channels |
| Recording Format (Proxy Video) | XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR |
| 1920×1080, 9Mbps | |
| 1280×720, 9Mbps | |
| 1280×720, 6Mbps | |
| 640×360, 3Mbps | |
| 480×270, 1Mbps | |
| 480×270, 0.5Mbps | |
| Lens | |
| Lens Mount | Fixed type |
| Zoom Ratio | 25x |
| Focal Length | 3.7 mm to 92.5 mm |
| (equivalent to 28.8 mm to 720 mm on a 35 mm lens) | |
| Iris | Auto/manual swichable |
| F1.6 to F11 and C(close) | |
| Focus | 800 mm to ∞ (Macro Off) |
| 10 mm to ∞ (Macro On, Wide) | |
| 800 mm to ∞ (Macro On, Tele) | |
| AF/MF/Full MF selectable | |
| Image Stabilizer | On/Off selectable, shift lens |
| Filter Diameter | M 82 mm , pitch 0.75 mm |
| Camera Section | |
| Imaging Device (Type) | 1/3 type back-illuminated Exmor R 3CMOS sensor |
| Effective Picture Elements | 3840 (H) x 2160 (V) |
| Optical System | F1.6 prism system |
| Built-in Optical Filters | ND filters |
| OFF: CLEAR | |
| 1: 1/4ND | |
| 2: 1/16ND | |
| 3: 1/64ND | |
| Linear variable ND (Approx. 1/4ND to 1/128ND) | |
| Sensitivity | (2000 lx, 89.9% reflectance)F11 (typical, 1920 x 1080/59.94p, High Sensitivity Mode) |
| F12 (typical, 1920 x 1080/50p, High Sensitivity Mode) | |
| Minimum Illumination | 0.01lx (typical) |
| (1920 x 1080/59.94i mode, F1.6, +30 dB gain, High Sensitivity Mode, with 64 frame accumulation) | |
| S/N Ratio | 57 dB (Y) (typical) |
| Horizontal Resolution | 2,000 TV lines or more (3840 x 2160p mode) |
| 1,000 TV lines or more (1920 x 1080p mode) | |
| Shutter Speed | 1/24 sec to 1/8,000 sec |
| Slow Shutter | (SLS)2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation |
| Slow and Quick Motion Function | |
| 2160P: 1-60 fps | |
| 1080P: 1-60 fps | |
| 720P: 1-60 fps | |
| White Balance | Preset (3200K), Memory A, |
| Memory B/ATW | |
| Gain | -3, 0, 3, 6, 9, 12, 15, 18 dB, 30dB (Turbo Gain ON), AGC |
| Gamma Curve | Selectable |
| Streaming | |
| Protocol | *3AVC / RTMP / RTMPS |
| 1920×1080 at 9Mbps | |
| 1920×1080 at 6Mbps | |
| 1280×720 at 3Mbps | |
| 640×340 at 1Mbps | |
| Input/Output | |
| Audio Input | XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable |
| LINE | +4, 0, -3dBu/10kΩ |
| MIC | -80dBu to -30dBu /3kΩ |
| (0 dBu=0.775 Vrms) | |
| Audio Output | Integrated into Multi/Micro USB jack(x1) |
| SDI Output | BNC (x1), 3G/HD/SD selectable |
| Timecode Input | BNC (x1) (switchable to TC out) |
| 0.5V-1.8Vp-p, 3.3kΩ | |
| Timecode Output | BNC (x1) (switchable to TC in) |
| 1.0Vp-p, 75Ω | |
| USB | USB device, Multi/Micro USB jack (x1) |
| Host:USB 3.0/2.0 type A(x1) | |
| USB 2.0 type A(x1) | |
| Headphone Output | Stereo mini jack (x1) |
| -16dBu 16Ω | |
| Speaker Output | Monaural |
| Output: 500mW | |
| DC Input | DC jack |
| Remote | Stereo mini-minijack (Φ2.5 mm) |
| HDMI Output | HDMI connector (Type A) |
| Wired LAN | RJ-45 (x1), 1000BASE-T, 100BASE-T, 10BASE-T |
| Monitoring | |
| Viewfinder | 1.0 cm (0.39 type) |
| Approx 2.36M dots | |
| LCD | 8.8cm (3.5 type) |
| Approx. 1.56M dots | |
| Built-in Microphone | Omni-directional stereo electret condenser microphone |
| Media | |
| Type | MS/SD(1),SD(1) |
| Wifi/NFC | |
| Supported Format | IEEE 802.11 a/b/g/n/ac |
| Frequency Band | 2.4 GHz bandwidth |
| 5.2/5.3/5.6 GHz bandwidth*2 | |
| Security | WEP/WPA-PSK/WPA2-PSK |
| NFC | NFC Forum Type 3 Tag compliant |
In the Box
- Lens hood (1), Pre-installed to the Camcorder
- EVF eyecup (1)
- Battery pack BP-U30 (1)
- AC Adapter/charger BC-U1A (1)
- Power Code (1)
- USB cable (1)
- Warranty Booklet (1)
- “Before Using this Unit” (1)
- CDROM “Operating instructions” (1)
