Description

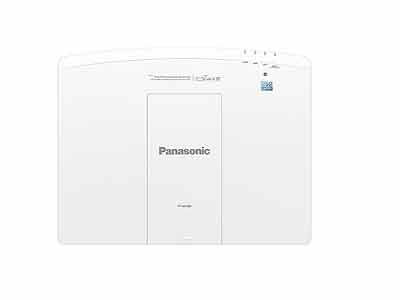

Panasonic PT-MZ680W WUXGA Laser LCD Projector

Panasonic PT-MZ680W (6,000 lm), WUXGA LCD Laser projectors with a refined Multi-Laser Drive Engine for the optimal balance of high brightness, vivid color, and low-maintenance operation. Flexible and cost-efficient LCD laser projector. Panasonic PT-MZ680W LCD Laser Projectors Deliver Well-Balanced Colour and Brightness with Seamless Integration into Corporate, Education, and Museum Environments

Well-Balanced Picture Quality

The refined optical engine balances high brightness and vivid color for the clearest image visibility in the classroom or office. Detail Clarity Processor 4, Dynamic Contrast and Daylight View Basic continuously optimize image display to suit the content and the environment.

Flexible Design That Fits Any Space

Unobtrusive cabinet design, whisper quiet 26 dB operation, DIGITAL LINK, and CEC-compatible HDMI® supporting 4K signals, and optional lenses including a new ultra-short-throw zoom (ET-ELU20) help integrate the projector into any space. Edge Blending, Geo Pro, Contrast Sync, and Shutter Sync enhance flexibility for immersive visual performance in museums.

Efficient, Eco-Friendly Reliability

Energy consumption is reduced by about 20% to help meet today’s CSR commitments. Multi-Laser Drive Engine and reusable Eco Filters extend maintenance up to 20,000 hours with Early Warning software reducing waste and enhancing system reliability.

Features

Laser LCD,6 000 lumens, WUXGA
Compact and lightweight body, designed with ultra-low noise operation (26dB)
Wide Lens shift area and Ultra-Short Throw lens to expand installation capability
Edge Blending function to realize versatile space creation
A significant contribution to sustainability thanks to low Power consumption and Washable Eco Filter

Specifications

Feature	Specification
Projector type	LCD projectors
LCD panel
Panel size	19.3 mm (0.76˝) diagonal (16:10 aspect ratio)
Display method	Transparent LCD panel (x 3, R/G/B)
Drive method	Active matrix
Pixels	2,304,000 (1920 x 1200) pixels x 3
Light source	Laser diodes
Light output	6,000 lm
Time until light output declines to 50 %	20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution	WUXGA (1920 x 1200 pixels)
Contrast ratio	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. HDMI signal input)
Screen size (diagonal)	1.02–10.16 m (40–400 in), 1.52–10.16 m (60–400 in) with the ET-ELW22, 2.54–10.16 m (100–400 in) with the ET-ELU20, 16:10 aspect ratio
Center-to-corner zone ratio	85 %
Lens	Powered zoom (throw ratio 1.61–2.76:1), powered focus F = 1.7–2.3, f = 26.8–45.5 mm (for supplied lens; optional lenses also available)
Lens shift
Vertical (From the origin point of the lens mounter)	±67 % (powered) (for supplied lens; optional lenses also available)
Horizontal (From the origin point of the lens mounter)	±35 % (powered) (for supplied lens; optional lenses also available)
Keystone correction range	Vertical: ±25 °, Horizontal: ±30 ° (for supplied lens; optional lenses also available)
Installation	Ceiling/floor, front/rear, free 360-degree installation
Terminals
HDMI IN	HDMI 19-pin x 3 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input), CEC supported
COMPUTER IN	D-sub HD 15-pin (female) x 1 (RGB/YP_BP_R/YC_BC_R)
MONITOR OUT	D-sub HD 15-pin (female) x 1 (RGB/YP_BP_R/YC_BC_R)
SERIAL/MULTI SYNC IN	D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant)
MULTI SYNC OUT	D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN	M3 stereo mini-jack x 1 for wired remote control
REMOTE 2 IN	D-sub 9-pin (female) x 1 for external control (parallel)
AUDIO IN	M3 stereo mini-jack x 1
AUDIO OUT	M3 stereo mini-jack x 1
DIGITAL LINK/LAN	RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input)
LAN	RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink [Class 2], Art-Net)
DC OUT	USB Connector (Type A) x 1 (Output 5 V/2 A)
Power supply	AC 100–240 V, 50/60 Hz
Power consumption
Maximum power consumption	360 W (4.2–2.0 A) (395VA) (Power consumption is 345 W at 200–240 V)
On-mode power consumption (Light power)	[NORMAL]: 330 W (100–120 V), 315 W (200–240 V), [ECO]: 240 W (100–120 V), 230 W (200–240 V), [QUIET]: 238 W (100–120 V), 228 W (200–240 V)
Cabinet materials	Molded plastic
Filter	Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise	32 dB (NORMAL/ECO), 26 dB (QUIET)
Dimensions (W x H x D)	561 x 224 x 439 mm (22 3/32″ x 8 13/16″ x 17 9/32″) (with supplied lens)
Weight	Approx. 17.6 kg (38.8 lbs) (with supplied lens)
Operating environment	Operating temperature: 0–45 °C (32–113 °F), operating humidity: 20–80 % (no condensation)
Applicable software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control for iOS/Android, Geometry Manager Pro
