Description
AJA ROI-SDI High-Quality Scan Converter
AJA ROI-SDI Scan Converter allows exceptionally high-quality conversion and extraction of a Region of Interest (ROI) from a 3G-SDI input to 3G-SDI and HDMI mirrored outputs at an affordable price in a very portable form factor. With incredible image scaling, extensive aspect ratio conversion, and audio functionality, ROI-SDI fulfills the growing need to customize video signals for a range of display and SDI workflow needs without sacrificing budget or space.
Region of Interest
Rotate source signals, customize a portion of an image, or reframe the source image to extend the creative options for what’s been captured in the camera.

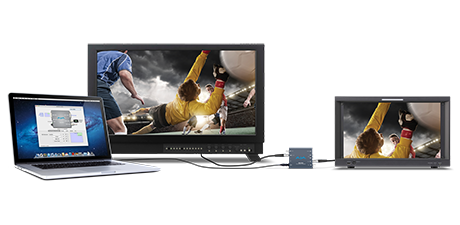

Connecting an ROI-SDI Mini-Converter via USB to a computer running the free Mini-Config application lets you interactively select a Region of Interest from the original signal and have full control over how that region is scaled to the output resolution using AJA’s high-quality scaling algorithms for the cleanest picture quality possible.
Conversion
Take full control of aspect ratio conversion with on-screen controls in the Mini-Config software that show you exactly what your source and output will look like and what formats are coming in and going out. Simple menu controls let you quickly choose the proper output for any situation.
The output will be mirrored to both the 3G-SDI and HDMI outputs for simultaneous delivery to multiple displays or continuing signal paths.
Connectivity
ROI-SDI utilizes a direct 3G-SDI loop through, allowing it to be placed in-line so you still have a connection to an external monitor while extracting to both 3G-SDI and HDMI. The reference input ensures the 3G-SDI signal out of ROI is locked for use throughout a production or facility.
Audio
ROI-SDI accepts 8-channel embedded audio from a 3G-SDI input. The audio source and routing can be selected in the Mini-Config software and are embedded in the 3G-SDI and HDMI outputs. ROI-SDI also features a stereo RCA output for simple monitoring needs.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Mini-Converter products are covered by a generous five-year warranty.
Additional information
| Weight | 1.5 kg |
|---|
Features
- SDI to HDMI/3G-SDI conversion with SDI loop through
- Scan Converter
- 3G-SDI and HDMI 1.4 outputs
- Supports SD, HD, and 3G formats (see Tech Specs for complete list)
- Region of Interest scaling
- Up, down, cross-conversion
- Aspect ratio conversion
- Frame rate conversion
- Image H/V flip and 90 degree rotation
- Conversion between Deinterlaced and Progressive signals
- Loss of input management: Black, Freeze, or Mute
- Supports 8-channels of embedded audio
- The 2-channel analog audio output of disembedded audio
- Genlock: Reference Input, SDI Input, or Free Run
- Configure via USB port and supplied AJA Mini-Config software, PC/Mac
- Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
- Five-year warranty
Specifications
| Video Input Formats |
|
| Video Output Formats |
|
| Color Range |
|
| Reference Source |
|
| Reference Input | Supported reference video inputs include:
|
| Video Input | 1x 3G-SDI BNC, SMPTE-259/292/424 |
| Video Outputs |
|
| HDCP | ROI does not encode the HDMI output with HDCP encryption |
| Audio Output Digital |
|
| Audio Output Analog | 2x Analog RCA Jack, 2-Channel |
| User controls | USB port used with supplied cable and Mini-Config software application to configure the device via Mac or Windows |
| Size (w x d x h) | 5.77″ x 4.02″ x 0.9″ (146.56 x 102.11 x 22.86 mm) |
| Weight | 0.6 lb (0.3 kg) |
| Power |
|
| Environment |
|
