Description
AJA ROI-HDMI HDMI to 3G-SDI Converter
AJA ROI-HDMI Scan Converter allows exceptionally high-quality conversion of computer and HDMI outputs to baseband video over SDI at an affordable price and a very portable size. With extensive audio functionality, incredible image scaling as well as aspect and frame rate conversion, ROI-HDMI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space.
Region of Interest
Eliminate extra interface clutter and menu bars and extract only the portion of the computer screen you want.
Connecting an ROI Mini-Converter via USB to a computer running the free Mini-Config application lets you interactively select a Region of Interest from the incoming computer signal and have full control over how that region is scaled to the output resolution using AJA’s high-quality scaling algorithms for the cleanest picture quality possible.

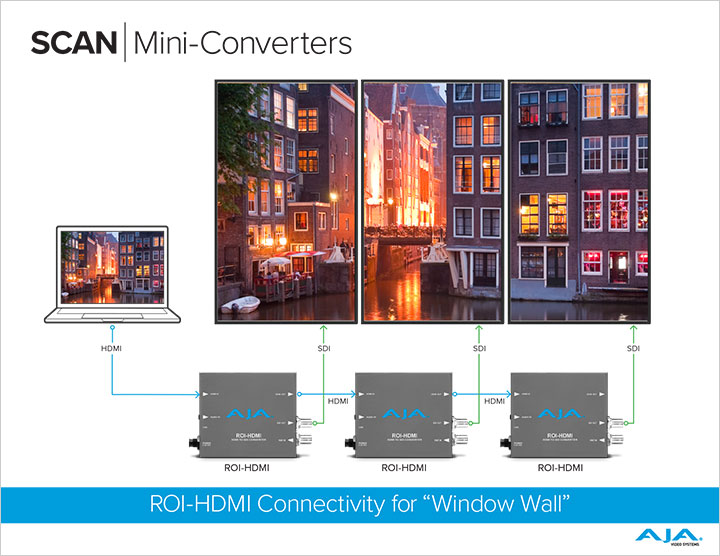

ROI Window Wall Workflow
You’re able to easily create highly effective and engaging displays by using additional ROI-HDMI mini-converters. By utilizing three ROI-HDMI mini-converters you can feed three display monitors side by side, each rotated to portrait mode. By using the HDMI pass-through of the ROI-HDMI, the HDMI-routed image is in sync, with each ROI-HDMI providing the necessary region of interest output via SDI. The result is a visually exciting and creative way to feed display content.
Conversion
Take full control of aspect ratio and frame rate conversion with on-screen controls in the Mini-Config software that show you exactly what your source and output will look like and what formats are coming in and going out. Simple menu controls let you quickly choose the proper output for any situation.
Connectivity
ROI utilizes a direct loop through, allowing it to be placed in line so you still have a connection to an external monitor while extracting to SDI. The reference input ensures the SDI signal out of ROI is locked for use throughout a production or facility.
Audio
ROI accepts 2-channel audio from the 3.5mm analog audio input or embedded 8-channel audio from an HDMI input. The audio source and routing can be selected in the Mini-Config software and are embedded in the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.
Additional information
| Weight | 1.5 kg |
|---|
Features
- HDMI to 3G-SDI conversion with HDMI loop through
- Scan Converter
- EDID Emulation
- 3G-SDI output
- Supports SD, HD, and 3G formats (see Tech Specs for complete list)
- Region of Interest scaling
- Up, down, cross-conversion
- Aspect ratio conversion
- Frame rate conversion
- Image H/V flip and 90-degree rotation
- Conversion between Deinterlaced and Progressive signals
- Accepts input DVI formats up to 1920 x 1200 60 Hz
- Loss of input management: Black, Freeze, or Mute
- Supports 8-channels of embedded audio
- 2-channel embedding of balanced analog audio inputs or 2-channel or 8-channel HDMI audio
- Genlock: Reference Input, HDMI Input, or Free Run
- Configure via USB port and supplied AJA Mini-Config software, PC/Mac
- Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
- Five-year warranty
Specifications
| Video Input Formats | Computer Signals:
Video Signals:
Note: Frame rates are limited by the 166 mHz max pixel rate of the HDMI receiver. |
| Video Output Formats |
|
| Color Range |
|
| Reference Source |
|
| Reference Input | Supported reference video inputs include:
|
| Video Input | 1x HDMI input connector (with embedded audio, up to 8 channels) |
| Video Outputs | HDMI
SDI
|
| HDCP |
|
| Audio Inputs |
|
| Audio Output | SDI-embedded audio, 24-bit, 2-channel or 8 channel |
| User Interface | USB port used with supplied cable and Mini-Config software application to configure the device via Mac or Windows |
| Size (w x d x h) | 5.77″ x 4.02″ x 0.90″ (146.56 x 102.11 x 22.86 mm) |
| Weight | 0.6 lb (0.3 kg) |
| Power |
|
| Environment |
|
