AJA 12G-AMA 12G-SDI, 4-Channel Balanced Audio Embedder/Disembedder with Fiber Options

The AJA 12G-AMA is a 4-channel analog audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single-link fiber I/O including LC and ST options.

Audio disembedding is always functional, providing four analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input analog audio from the breakout cable.

Analog audio levels are selectable. The 12G-AMA automatically detects and configures the input video standard.

12G-AMA Workflow

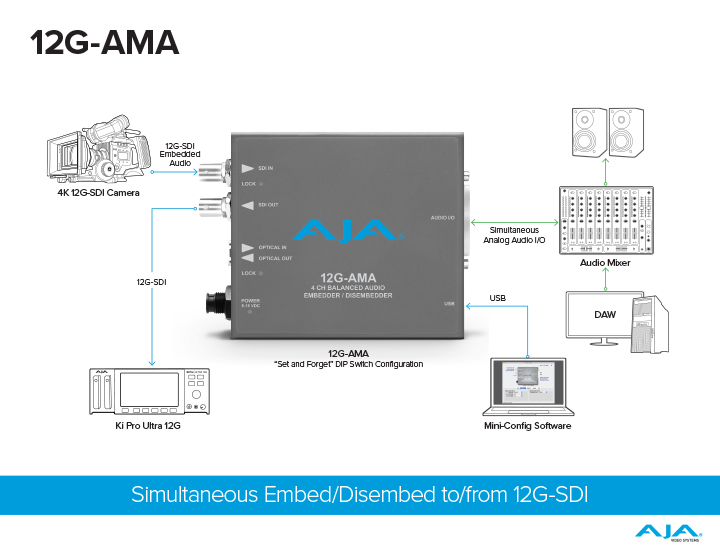

The 12G-AMA in this workflow diagram is receiving 4K video and embedded audio via 12G-SDI. At the same time, the 12G-AMA is disembedding analog audio to the analog audio I/O for mixing.

The output of the mixer is then embedded into the SDI stream being output via the 12G-SDI port of the 12G-AMA. This 12G-SDI output is fed directly to a Ki Pro Ultra 12G to record the original 4K video with the newly embedded, mixed audio.

Supplied Breakout Cable

The included breakout cable supports 1-channel of analog audio per XLR connector for 4 channels of input and 4 channels of output simultaneously.

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter and load firmware updates from AJA that add new features and functionality.

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

Additional information

Weight	2 kg

Features

12G-SDI Input and Output up to 4K/UltraHD
4-channel balanced audio Embedder/Disembedder with LC and ST Fiber model options. (Please see models below).
Audio Disembedding is always functional with four Analog outputs
Audio Embedding is user selectable to either pass 12G-SDI input audio or embed input analog audio
Selectable Analog audio levels
Automatically detects and configures the input video standard
1.5G-SDI Internal Signal Generator allows the embedder path to function without needing to connect a source to the SDI input
The small form factor allows for a wide variety of installation locations
Supplied XLR breakout cable offers 4-channels In and 4-channels Out over eight XLR connectors
Configure via USB port and supplied AJA Mini-Config software
DIP Switch Configuration
+5-16 VDC Power

Specifications

Video Formats	(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94 RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Video Input Digital	1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425
Video Output Digital	1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425
Cable Equalization	(Belden 1694A coax) 12 Gbps, 65m 6 Gbps, 125m 3 Gbps, 190m 1.5 Gbps, 200m 270 Mbps, 405m
Video Path Delay	Video Out is a delayed, reclocked version of Video In, at the same frame rate, etc. Video Out is undefined when no input. Video Latency, time measured between video input and video output connector: 12G = 3.2 µsec 6G = 3.2 µsec 3G level B (Dual Stream HD mode) = 6.3 µsec 3G level A = 3.2 µsec HD (1.5 Gb) = 6.3 µsec SD (270 Mb) = 17.2 µsec
Audio Inputs and Outputs	Balanced Analog Audio, 1x 25 pin D female connector on the converter, 4-channels in, 4-channels out Breakout cable provided with 1x 25 pin D male connector: 4x XLR female input breakout connectors 4x XLR male output breakout connectors
Digital Audio Converters	24-bit
Embedded Audio	SMPTE 272M (SD): 20-bit, 48 kHz synchronous SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous Incoming embedded audio can be passed, removed, or overridden Up to 16 channels supported
Path Audio Latency	Embed Path 1100 µsec Disembed Path 1200 µsec
Analog Audio Levels	Configured via Mini-Config software: Pro 1: 0 dBfs = +24 dBu Pro 2: 0 dBfs = +18 dBu Pro 3: 0 dBfs = +15 dBu Consumer 1: 0 dBfs = +12 dBu
User Interface	External DIP switch USB port used with Mini-Config software application to configure the device via PC/Mac
Size (w x d x h)	5.8″ x 3.1″ x 1.0″ (147.32 x 78.74 x 25.4 mm)
Weight	0.6 lb (0.3 kg)
Power	+5-16VDC, 10 watts. power supply required, included with purchase
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% non-condensing Operating Altitude: <3,000 meters (<10,000 feet)
