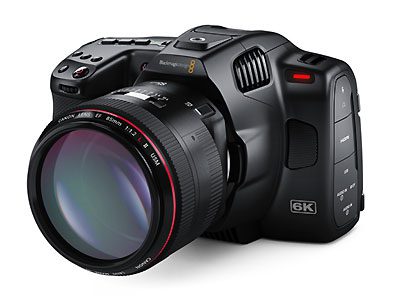

Blackmagic PocketCinema Camera 6K G2

Blackmagic Pocket Cinema Camera 6K G2 is an advanced technology, handheld 6K digital film camera with a 6144 x 3456 Super 35 high-resolution HDR sensor, dual native ISO, EF lens mount, and direct recording to USB-C disks. This powerful model adds an adjustable touchscreen, and a larger battery for a longer run time. You can even add an optional OLED viewfinder.

Featuring a larger 6144 x 3456 Super 35 sensor and EF lens mount, the Blackmagic Pocket Cinema Camera 6K G2 lets you use EF photographic lenses to create cinematic images with a shallower depth of field. It also has an adjustable tilt LCD, viewfinder mount, mini XLR audio inputs, and an NP-F570-style battery.

Lightweight CarbonFiber Polycarbonate Composite

The elegant design of the Blackmagic Pocket Cinema Camera packs an incredible number of the high-end digital film features into a miniaturized, handheld design. Made from lightweight carbon fiber polycarbonate composite, the camera features a multifunction handgrip with all controls for recording, ISO, WB, and shutter angle right at your fingertips. Because it’s an advanced digital film camera, the sensor is designed to reduce thermal noise allowing cleaner shadows and higher ISO. Plus the large 5-inch LCD makes it possible to get perfect focus at 4K and 6K resolutions. You also get a removable battery door, 4 shockproof microphones, a heavy-duty lens mount, and a built-in speaker.

Multifunction Grip with Fingertip Controls

The multifunction handgrip features an ergonomic design that puts important functions such as ISO, WB, and shutter buttons at your fingertips. There’s even a scroll wheel under your index finger for making quick iris adjustments! Additional controls go beyond those found on a DSLR, which means you don’t have to go hunting through menus on a tiny screen to find a command! The Blackmagic Pocket Cinema Camera features easy-to-reach recording and still buttons that are placed exactly where you expect, including user-assignable function keys allowing buttons for high frame rate, focus zoom, false color, and more. The Blackmagic Pocket Cinema Camera 6K Pro also adds extra ND filter controls.

High-Resolution Cinematic Digital Film Sensor

The Blackmagic Pocket Cinema Camera 4K features a native sensor resolution of 4096 x 2160, while the 6K models have a native resolution of 6144 x 3456. Whether you’re shooting in bright sunlight or in almost no light at all, the 13 stops of dynamic range with dual native ISO up to 25,600 provide stunning low-noise images in all lighting conditions. Plus the 6K models feature a larger Super 35 sensor that allows shooting with a shallow depth of field and anamorphic lenses. All models let you shoot up to 60 fps in full resolution or 120 fps windowed. An amazing sensor combined with Blackmagic color science means you get the same imaging technology as the most expensive digital film cameras.

Shoot Incredible HighDynamic Range (HDR) Images

The distance between the lightest and the darkest parts of an image is called dynamic range and is measured in stops. Pocket Cinema Cameras have an incredible 13 stops of dynamic range which means they preserve more detail in the lightest and darkest areas of an image than simple video cameras can. This allows you to set the exposure for an indoor scene such as a cafe and still retain the details of bright outdoor light coming through a window. You also get more colors than the standard DCI-P3 colorspace used for feature films. Plus DaVinci Resolve Studio is included with the camera, so you get total creative freedom with full exposure adjustment and recovery controls when color grading.

Dual Gain ISOfor Exceptional Low Light Performance

In the digital film, ISO is a measurement of the image sensor’s sensitivity to light. This means the higher the ISO number the more sensitive to light so it’s possible to shoot using natural light even at night, The Pocket Cinema Cameras feature dual gain ISO up to 25,600, which means they’re optimized to minimize grain or noise in images while maintaining the full dynamic range of the sensor. The native ISO of 400 is ideal for scenes with on-set lighting. The secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain is set automatically as you adjust the ISO setting, so it’s easy to capture great images when you don’t have time to set up lights.

Post Production Friendly File Formats

Blackmagic Pocket Cinema Camera records using standard open file formats so you don’t have to waste time transcoding media. Files are compatible with all post-production software so you can work with the software of your choice, or use the included DaVinci Resolve Studio. Recording works in industry-standard 10-bit Apple ProRes files in all formats up to 4K or 12-bit Blackmagic RAW in all formats up to 6K. Blackmagic RAW is the fastest-growing RAW format. Developers can download and use the free Blackmagic RAW SDK to add support to their applications. Best of all media files work on all operating systems plus you can format media cards and disks in HFS+ for Mac and ExFAT for Windows.

Touchscreen for Fast Setup

The large LCD touchscreen displays critical information on the heads-up display, or HUD, as well as access to camera setup menus. The HUD lets you see and adjust settings such as the frame rate, iris, timecode, shutter angle, white balance, ISO, audio levels, and more with a single tap. You can show or hide the HUD by simply swiping up or down. Adjust settings such as white balance simply by touching the WB indicator, or change the audio levels by touching the audio meters. Everything is interactive, so you can tap any item and instantly change settings without searching through confusing menus! You can also access settings such as the digital slate, to quickly add metadata to any shot.

Additional information

Weight 4 kg

Features

  • Designed from carbon fiber polycarbonate composite.
  • 6144 x 3456 sensor with 13 stops and dual native ISO up to 25,600.
  • Compatible with a wide range of popular EF lenses.
  • Up to 25,600 ISO for incredible low-light performance.
  • Standard open file formats are compatible with popular software.
  • Adjustable LCD screen.
  • Includes Blackmagic Generation 5 Color Science.
  • Optional Blackmagic Pocket Cinema Camera Pro EVF.
  • Professional mini XLR inputs with 48-volt phantom power.
  • Larger NP-F570 battery, optional Blackmagic Pocket Camera Battery Pro Grip.
  • Includes full DaVinci Resolve Studio for post-production.

Specifications

Camera Features
Effective Sensor Size 23.10mm x 12.99mm (Super 35)
Lens Mount Active EF mount.
Lens Control Iris, focus and zoom on supported lenses.
Dynamic Range 13 Stops.
Dual Native ISO 400 and 3200
Shooting Resolutions 6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5744 x 3024 (5.7K 17:9) up to 60 fps
4096 x 2160 (4K DCI) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
2868 x 1512 (2.8K 17:9) up to 120 fps
1920 x 1080 (HD) up to 120 fps
Frame Rates Maximum sensor frame rate dependent on resolution and codec selected
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps are supported.
Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9, and 1080HD.
Built-in ND Filters None
Focus Autofocus is available using compatible lenses.
Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
Screen Dimensions 5” 1920 x 1080.
Screen Type LCD capacitive touchscreen.
Metadata Support Automatically populated lens data from electronic EF lenses
Automatic recording of camera settings and slate data such as project scene number, take and special notes. A 3D LUT can also be embedded in the metadata of Blackmagic RAW files.
Controls Touchscreen menus on a 5-inch screen. 1 x Power Switch
1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into the handgrip
1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons
1 x IRIS Button, 1 x Focus Button, 1 x High Frame Rate (HFR) Button
1 x Zoom Button, 1 x Menu Button, and 1 x Playback Button.
Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

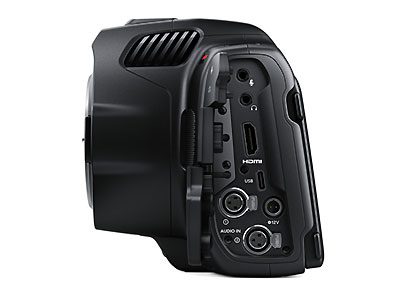

Connections
Total Video Inputs None
Total Video Outputs 1 x HDMI up to 1080p60
Analog Audio Inputs 2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input.
All audio inputs can also be used for Timecode input.
Analog Audio Outputs 1 x 3.5mm headphone jack.
Computer Interface USB Type-C for external drive recording, PTP camera control, and software updates.
Audio
Microphone Integrated stereo microphone.
Built-in Speaker 1 x mono speaker.
Standards
SD Video Standards None
HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97
1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
2160p50, 2160p59.94, 2160p60
4K DCI Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Media
Media 1 x CFast card slot, 1 x SD UHS‑II card slot, 1 x USB-C 3.1 Gen 1 expansion
port for external media for Blackmagic RAW and ProRes Recording.
Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5,
ProRes 422 HQ QuickTime,
ProRes 422 QuickTime,
ProRes 422 LT QuickTime,
ProRes 422 Proxy QuickTime.
Control
External Control Blackmagic Zoom Demand and Blackmagic Focus Demand for
controlling your camera and lens from tripod handles.
iPad control, Bluetooth control, USB PTP camera control
External control of some camera settings, focus, iris and zoom with compatible lenses
color corrector, tally and internal record start and stop when used with a compatible
ATEM and ATEM Software Control.
Color Corrector
Color Corrector DaVinci YRGB.
Storage Features
Storage Type 1 x CFast 2.0.
1 x SD UHS-II card.
1 x high speed USB-C expansion port for external media.
Recording Formats Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5
at 6144 x 3456, 6144 x 2560, 5744 x 3024, 4096 x 2160, 3728 x 3104 and 2868
x 1512 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.
ProRes at 4096 x 2160, 3840 x 2160 and 1920 x 1080 with film
extended video or video dynamic range or custom 3D LUT.
Storage Rates Storage rates based on 30 frames per second.
6144 x 3456 (6K)
Blackmagic RAW 3:1 – 323 MB/s
Blackmagic RAW 5:1 – 194 MB/s
Blackmagic RAW 8:1 – 121 MB/s
Blackmagic RAW 12:1 – 81 MB/s
Blackmagic RAW Q0 – 242 to 483 MB/s
Blackmagic RAW Q1 – 162 to 387 MB/s
Blackmagic RAW Q3 – 108 to 277 MB/s
Blackmagic RAW Q5 – 65 to 162 MB/s
6144 x 2560 (6K 2.4:1)
Blackmagic RAW 3:1 – 240 MB/s
Blackmagic RAW 5:1 – 144 MB/s
Blackmagic RAW 8:1 – 90 MB/s
Blackmagic RAW 12:1 – 60 MB/s
Blackmagic RAW Q0 – 180 to 359 MB/s
Blackmagic RAW Q1 – 120 to 287 MB/s
Blackmagic RAW Q3 – 80 to 205 MB/s
Blackmagic RAW Q5 – 49 to 120 MB/s
5744 x 3024 (5.7K 17:9)
Blackmagic RAW 3:1 – 264 MB/s
Blackmagic RAW 5:1 – 159 MB/s
Blackmagic RAW 8:1 – 100 MB/s
Blackmagic RAW 12:1 – 67 MB/s
Blackmagic RAW Q0 – 198 to 396 MB/s
Blackmagic RAW Q1 – 133 to 317 MB/s
Blackmagic RAW Q3 – 89 to 227 MB/s
Blackmagic RAW Q5 – 54 to 133 MB/s
4096 x 2160 (4K DCI)
Blackmagic RAW 3:1 – 136 MB/s
Blackmagic RAW 5:1 – 82 MB/s
Blackmagic RAW 8:1 – 51 MB/s
Blackmagic RAW 12:1 – 35 MB/s
Blackmagic RAW Q0 – 102 to 203 MB/s
Blackmagic RAW Q1 – 68 to 163 MB/s
Blackmagic RAW Q3 – 46 to 116 MB/s
Blackmagic RAW Q5 – 28 to 68 MB/s
Apple ProRes 422 HQ – 117.88 MB/s
Apple ProRes 422 – 78.63 MB/s
Apple ProRes 422 LT – 54.63 MB/s
Apple ProRes Proxy – 24.25 MB/s
Software
Software Included Blackmagic OS
DaVinci Resolve Studio for Mac and Windows including activation key
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK
Blackmagic RAW Speed Test
Operating Systems Mac 11.1 Big Sur, Mac 12.0 Monterey or later, Windows 10 and 11.
Power Requirements
Power Supply 1 x External 12V power supply.
External Power Input 1 x 2‑pin locking connector.
Battery Type NP-F570
Battery Life Approximately 60 minutes(recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%)
Power 12V-20V.
Environmental Specifications
Operating Temperature 0°to 40°C (32° to 104°F)
Storage Temperature -20°to 45°C (-4° to 113°F)
Relative Humidity 0% to 90% non-condensing
Warranty
Product Warranty 12-Month Limited Manufacturer’s Warranty.

In the Box

  • Blackmagic Pocket Cinema Camera 6K G2
  • Lens turret dust cap
  • Camera strap
  • 30W power supply with locking connector and international adapters
  • NP-F570 battery
  • NP-F series battery USB charger
  • Welcome booklet
  • DaVinci Resolve Studio activation key
