BB&S Lighting Pipeline Reflect 4 Foot

BB&S Lighting Pipeline Reflect 4 Foot (3200K) & (4300k) & (5600K)

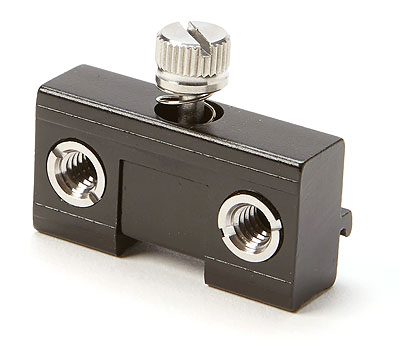

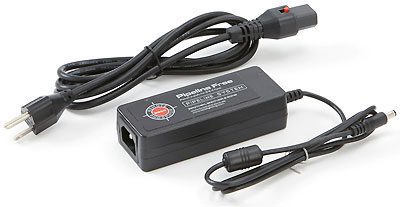

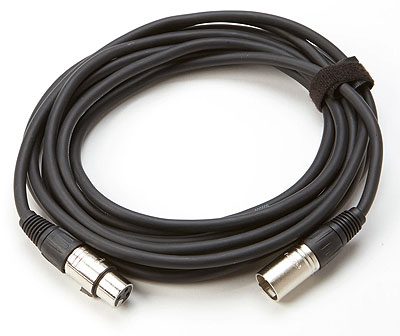

BB&S Pipeline Reflect 4 offers double the output of the original Pipeline Remote Phosphor fixture. You get the same great quality lighting drawing 40 watts but with an output of almost 8,000 Lumens at 95 TLCI. Available in 3200k, 4300k or 5600K. it comes with a 3-Pin XLR male mounted in the frame.The fixture comes with two sliding mount plates with 1/4″ and 3/8″ thread. The mounts slide from end to end for different mounting positions including side mounted or back mounted and you can purchase several mounting options as shown. Optional 3-Pin XLR Cables with high quality wire and insulation are available in 3 lengths; 8′, 15′ and 25′. An optional 40 watt inline Driver/Dimmer with a female 3-Pin XLR is available with a d-tap cable included for 14.4 VDC battery operation. An optional world power supply is available when you want to use AC power.You can also power each Reflect with the optional 4-Way Controller with 4- 40 watt channels.
Due to the popularity of our color-accurate (3200°K, 4300°K, or 5600°K) remote phosphor LED Pipeline fixtures, the BB&S engineering team has devised a new system based on the 1” cylindrical linear Pipes. Pipeline Reflect incorporates a new range of superior quality reflectors offering optimal control, and light dispersion spanning a 120° degree angle with practically no spill. Plus, the new Reflect System offers double the foot-candle output of the Pipes alone. And like all BB&S fixtures, the versatile Pipeline Reflect features offer strobe capability, especially when used with the optional BB&S 4-Way Controller.
Perfect Color Rendering 1’ to 8’ long

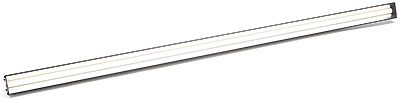

The Reflect System utilizes the same 95 TLCI color-accurate rendering remote phosphor 1-inch/25mm diameter LED Pipes that Pipeline is known for. Available standard in lengths from 1’ to 8’, Reflect housings are made of rigid, polished aluminum with a contoured base, 1.5” high sidewalls and a 2” wide opening. Smart engineering compresses the angle of illumination to double the foot candle output, compared to Pipes used alone.
Studio Hero
Reflect fixtures, are available in 1’, 2’, 3’, 4’, 6’, and 8’ lengths. They are ideal for studio grids, or anchor desks for a clean up light on talent or for washing walls, chroma screens or sets. Set designers will appreciate that the housings are black for a clean looking installation.
Easy Mounting

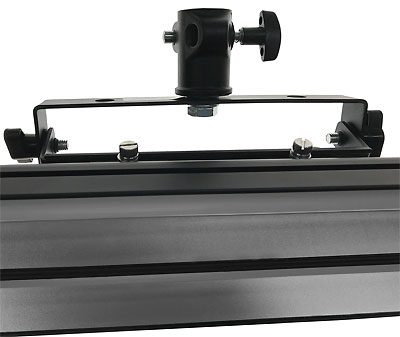

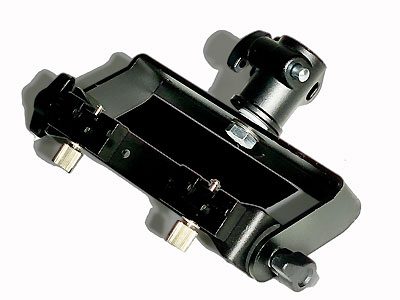

Another benefit is the Reflect housing’s easy mounting capability. A built-in speed rail-type solution allows for mounting onto grids. They can be placed side-by-side as singles, duals or quads using our new Mini yokes that swivel and hing plus a range of accessories are available.
Variety of Control Options

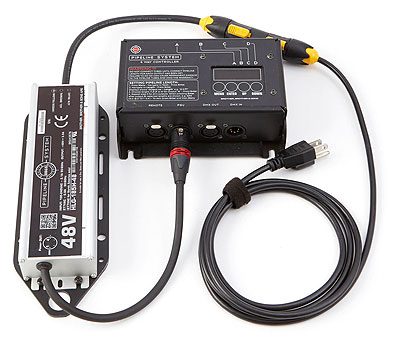

Made for customization, Reflect units feature a 3-pin XLR plug to allow the user to control the electronic configuration. For plug and play, fixtures may be operated via the BB&S 4-way Controller (has four 40W channels), with optional wireless DMX/RDM control or built-in DMX 512 in/out (all function).

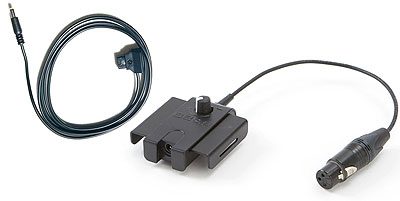

Pipeline 10W, 20W, 30W and 40W manually controlled Driver/Dimmers are available with 3-pin XLR to plug into Reflect fixtures so they can be powered by optional 20W or 65W power supplies or used with d-Tap cables on 14.4VDC batteries.
Clean and Easy Mounting
Controllers can be wall or ceiling mounted. The 3-Pin XLR mounted within the fixture results in a cleaner installation.
Upcoming Accessories
Barn doors, grid accessories, and optional removable gel filters will be available soon.

Features:

• Variety of lengths: 1’, 2’, 3’, 4’, 6’, 8’
• Perfect rendering 95 TLCI Remote Phosphor Pipes
• Choice of 3200°K, 4300°K or 5600°K
• 120-degree angle dispersion
• Minimized Spill
• Robust aluminum housing
• Twice the foot candle output as Pipes without Reflect Housing
• Easy mounting and compatibility with a full range of accessories
• Optional battery operation
• Compatible with BB&S 4-way Controller with DMX/RDM 512 in/out (all function) with 48VDC power.
• Strobe capability, especially when used with optional BB&S 4-Way Controller
• Optional Mini Yokes available for single, dual or quad mounting
