Description

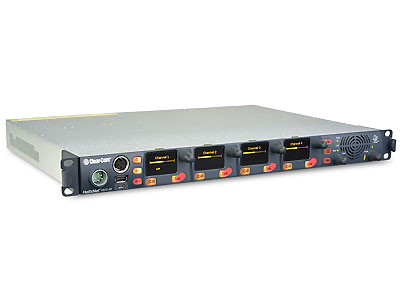

Clear-Com HelixNet HMS-4X Main Station
Clear-Com HelixNets HMS-4X main station is a combination of a system host and an intercom user station with XLR Powerline connections to user stations. HMS-4X hosts up to three HLI interface modules for external connectivity including Ethernet and Fiber.
The HelixNet IP Networking provides specifications, best practices, and guidance for the integration of HelixNet into an existing or new IP network.
HelixNet System Operation
- HelixNet System Host.
- 6 HMS can link over LAN & WAN.
- Supports up to 64 endpoints on the HelixNet system.
- 12 party-line channels; expandable to 24 channels via an optional license.
Main Station
- Easy to use CCM browser configuration.
- Fast front panel control & configuration.
- Plug-and-go with auto-discovery.
- Central upgrades from the main station.
User Station
- Headset or hands-free support with speaker & mic.
- 4 Keysets are assignable to channels.
- All Talk, Stage Announce, RMK & Program Audio level controls.
Connectivity
- 2 Powerlines for distribution of Ethernet to HelixNet user stations via XLR cables.
- 3 Expansion slots for HLI modules: Ethernet, fiber, 2-wire & 4-wire ports.
- Program Audio input.
- Stage Announce output.
- 4 Contact closure inputs & outputs.
LQ Integration Options
- LQ linking for high-density 2-wire, 4-wire, and GPIO expansion.
- Station-IC™ and Agent-IC as integrated via optional licenses.
- SIP/VoIP integrated via optionally licensed LQ.
Linking
HMS is required as the HelixNet Host. Link Group may include five additional HMS members, including up to three LQ devices for a maximum of six HMS/LQ in Link Group. HMS
link using HLI-ET2 or HLI-FBS modules over LAN/WAN connections. Link Group supports up to 64 endpoints (station/port).
Channels
The system provides 12 or 24 intercom channels assignable to any user station or port in the system. Four Channels can be assigned to the station. Program Audio can be associated with any channel with independent endpoint-level control.
Roles
99 Roles for naming and dynamic configuration of user station settings. The role can be applied to multiple user stations.
Additional information
| choose-product-variant | HMS-24-UG, HMS-4X |
|---|
Specifications
| Licenses | Host: HMS-4X Activation: Generated to unique HMS-4X device System ID Transferable: No, fixed to HMS-4X Recovery: Yes, by Clear-Com Support or Service Center |
| Permanent Licenses | Part numbers: HMS-24-UG Capability: 24 Channels Validity: Perpetuity |
| Connectors | XLR Powerline: (2) 3-pin XLR-M/F Gooseneck Mic: 3-pin Tuchel Headset: 4-pin XLR–M Program Audio: 3-pin XLR–F Stage Announce: 3-pin XLR–M Hot Mic/IFB Interface: 1/4″ (6.35 mm) TRS Jack GPIO: 25-pin D-type female (4 GPI, 4 GPO, 5V) USB: Type A & Micro AB (factory service use) Input Power Connector: IEC-C14 |
| Microphone Pre-amplifier | Headset Mic Impedance: 200O (Dynamic) Headset Mic Voltage: 1.7V (Electret selectable) Limiter: +23dB Route to 4-wire output at 0dBu: Mic Gain: 60dB (Dynamic), 45dB (Electret) Frequency Response: 200Hz – 10 kHz ±3dB Distortion: <0.2% THD @ 1kHz Noise: <-55dBu (Dynamic), <-65dBu (Electret) |
| Headphone Amplifier | Load Impedance: >32O Output Level: +12dBu before clipping Sidetone: -12dB (selectable) Route from a 4-wire input at 0dBu: Max Gain: 0dB Frequency Response: 40Hz – 10kHz ±3dB Distortion: <0.1% THD @ 1kHz Noise: <-65dBu Headphone Limiter: 0dB (selectable) |
| Loudspeaker Amplifier | Load Impedance: 80 Output Level: +18dBu before clipping Route from a 4-wire input at 0dBu: Max Gain: 18dB Frequency Response: 200Hz – 10kHz ±3dB Distortion: <0.1% THD @ 1kHz Noise: <-50dBu |
| Program Audio Line Input | Maximum Level Before Clipping: +18dBu Nominal Input Level: 0dBu (selectable) Input Impedance: >= 10KO Route to 4-wire output at 0dBu: Frequency Response: 20Hz – 10kHz ±3dB Distortion: <0.2% THD @ 1kHz Noise: <-65dBu |
| Stage Announce Output | Maximum Level Before Clipping: +18dBu Nominal Output Level: 0dBu (selectable) Output Impedance: <= 100O Route from a dynamic headset: Frequency Response: 300Hz – 12kHz ±3dB Distortion: <0.1% THD @ 1kHz Noise: <-55dBu |
| Hot Mic Output | Maximum Level Before Clipping: +12dBu Nominal Output Level: 0dBu (selectable) Output Impedance: <= 100O Route from a dynamic headset: Frequency Response: 300Hz – 12kHz ±3dB Distortion: <0.2% THD @ 1kHz Noise: <-55dBu |
| Powerline | Two independent networks XLR Powerlines Frequency Modulated Ethernet – OFDM Output Voltage: ±29.5V DC Output Current (Max): 1.5A per Powerline Frequency: 100kHz-25MHz Requires shielding integrity between Powerlines Support up to 10 beltpacks each Support up to 3-10 stations each |
| Logic Power Output | Output Voltage: 5V, separate pin Current (Max): 1mA |
| Logic Inputs -GPI | Assignable to talk, call, mic and headset keys Input: 4 Style: Optically isolate Detection Voltage (Min): 3V Input Voltage (Max): 5V |
| Logic Outputs – GPO/Relay | Assignable to talk, call, SA keys and channel events Outputs: 4 Style: Power Relay Normalized: Open or Closed, separate pins Switching Voltage (Max): 30V Switching Current (Max): 2A |
| Power | Input Frequency Range: 100 – 240V AC Input Frequency Range: 50 – 60Hz Power (Max): 250W Input Power Connector: IEC-C14 Practical Power Range: Power (Normal): 80-250W BTU (Normal): 275-850BTU/hr Dependent on hosted modules and powerline connected beltpacks |
| Environmental | 32º – +104ºF (0 – +40ºC) 90% relative humidity |
| Dimensions | 1.75 x 19 x 13in (HxWxD)(44 x 483 x 320mm) |
| Weight | 5.83lbs (2.65kg) |
| Network Protocols | Ethernet IPv4–Unicast Audio and Control mDNS–Multicast Device Discovery Layer 3 routable with mDNS function limitations HTTP–Management TFTP-File Transport Protocol NTP–Network Time Protocol RTP–Audio Transport WavPack–Audio Codec |
| Network Ports | Unicast:
Port 69 UDP–Firmware File Server Multicast: Port 5353 UDP–mDNS, Names, Discovery, Linking, Expansion Optional for device names and linking |
| Network Parameters | Link Group Endpoint Support: 64 Endpoints are user stations, active Interface ports, Program Audio inputs, and LQ accounts.
Bandwidth: 300 kbps for each audio input linking between HMS/LQ Link Group audio sent dynamically between members 300-600 (max) kbps from each endpoint audio input to HMS 1200-2400 (max) kbps from HMS to each endpoint audio output Network Jitter Tolerance: <= 128ms jitter buffer per audio stream receiver automatically adjusted to network performance QoS Tags: DSCP=41, Assured Forwarding (AF) Link-Local Default IP Address Range: 169.254.0.0/16 System Reserved IP Ranges: 10.0.0.0/8 for endpoints 172.23.0.0/16 for Link Group |
| Recommended Ethernet Switches | • Managed Ethernet Switch – Layer 3 • 100/1000 Base-T ports for endpoints • 1000 Base IP Trunks between switches • QoS Configuration • Energy Efficient Ethernet bypass option • IGMP Snooping bypass option |
